BERNARDO Profi center Lathe

Description

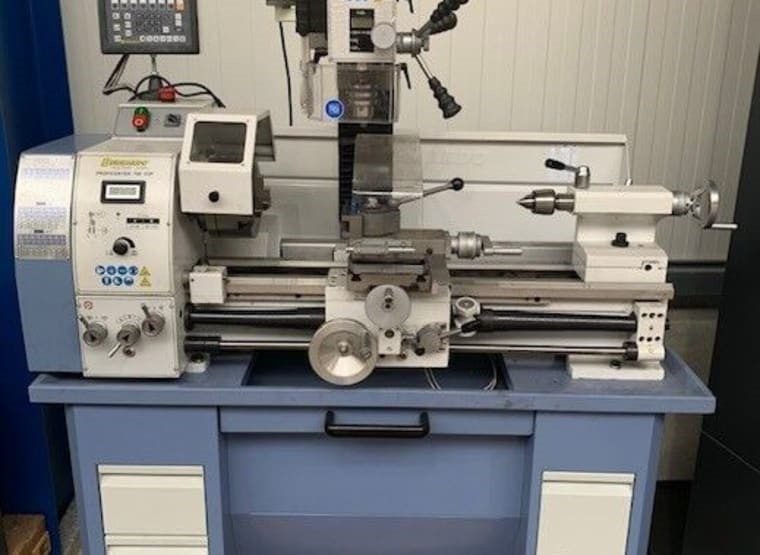

New BERNARDO Profi Center Lathe – Center 700 TOP

BERNARDO Profi center Lathe

Overview

The BERNARDO Profi Center Lathe – Center 700 TOP is a compact, versatile, and high-precision machine designed for workshops that need both turning and light milling capabilities. This new center lathe combines solid construction with modern features, making it a great choice for maintenance work, toolrooms, and small production environments. With its user-friendly design and reliable performance, it’s ideal for both experienced machinists and those looking for a flexible all-in-one solution.

Key Specifications

• Turning diameter: 300 mm
• Turning length: 700 mm
• Swing over bed slide: 170 mm
• Centre height: 150 mm
• Spindle bore: 38 mm
• Speed range: 70–2000 rpm
• Tailstock taper: MK3
• Quill stroke: 85 mm
• Motor power: 1.7 kW

These specifications make the machine perfect for precision work on small to medium-sized components.

Performance & Control

The lathe features electronically infinitely variable speed control, allowing smooth adjustments for different materials and tasks. The frequency converter ensures consistent power delivery and high torque, even at lower speeds. With a spindle runout of just 0.009 mm, you can expect excellent accuracy and high-quality finishes.

Turning & Milling Capability

One of the standout features of this machine is its milling attachment, complete with a digital display for spindle stroke and speed. The swiveling milling head allows for angled drilling and bevel machining, giving you added flexibility in your work. Fine spindle adjustment via handwheel ensures precise control during operations.

Feed System

• Longitudinal feed: 14 steps (0.07 – 0.65 mm/rev)
• Cross feed: 11 steps (0.03 – 0.12 mm/rev)

Automatic longitudinal and cross feeds make machining smoother and more efficient.

Included Equipment

This lathe comes fully equipped with a wide range of accessories:

• 2-axis digital display (ES-12 V with LCD)
• 3-jaw chuck (160 mm) with flange
• Drill chuck (1–13 mm) with arbor
• Quadruple tool holder
• Fixed centers and change gears
• Micrometer longitudinal stop
• Digital quill stroke and speed display
• Chuck protection and lead screw cover
• Chip rear panel and operating tools

Optional Equipment

• BERNARDO D8 Deluxe base frame
• MULTIFIX quick-change tool holder (size A)
• Machine vice

Conclusion

The BERNARDO Profi Center 700 TOP lathe is a flexible, accurate, and easy-to-use machine that offers both turning and milling in one compact unit. It’s an excellent investment for workshops looking to maximize capability without taking up too much space.
