Overview

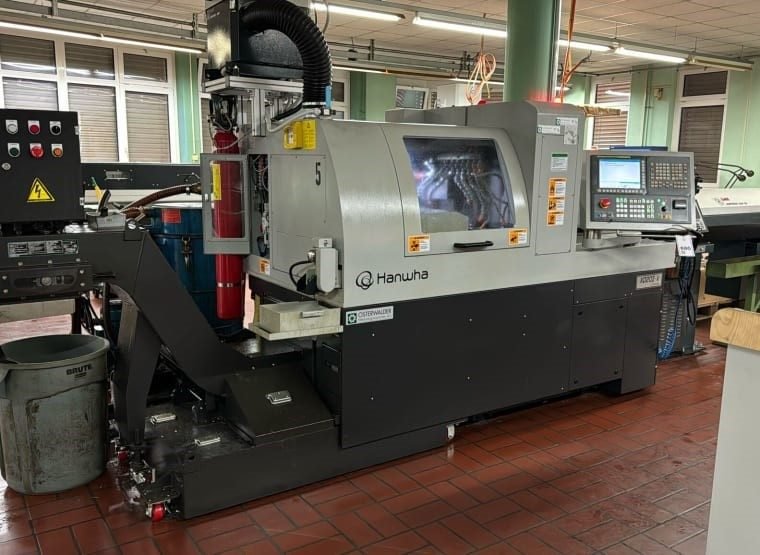

The HANWHA XD 20II-V CNC Sliding Headstock Lathe is a high-precision, production-focused machine designed for fast and efficient machining of small, complex components. Built for industries such as medical, automotive, and electronics, this lathe offers excellent accuracy, speed, and flexibility. With its advanced configuration and automatic features, it is ideal for high-volume manufacturing where consistency and productivity are essential.

Key Specifications

• Maximum bar diameter: 20 mm
• Maximum machining length: 210 mm
• Max machining length (without guide bush): 50 mm
• Y-axis travel: 67 mm
• C-axes: 6 + 2

These specifications make the machine perfect for producing precision parts with intricate geometries.

Performance & Capability

The HANWHA XD 20II-V is equipped with a sliding headstock system, allowing for superior stability when machining long and slender components. The machine features 8 tool positions on the Y-axis (4 driven and 4 fixed tools), enabling multiple operations in a single cycle. This significantly reduces setup time and improves overall efficiency.

The inclusion of 6 + 2 C-axes provides advanced machining flexibility, allowing for complex milling, drilling, and threading operations with high precision.

Advanced Features

This machine comes with several valuable options to enhance performance and automation:

• Off-center front machining system with 2 additional ER16 spindles (T51/T52)
• Chip conveyor for efficient chip removal and cleaner operation
• Long part removal system for continuous production
• 8 additional M-functions for expanded machine control
• High-pressure coolant pump (120 bar, 10 l/min) for improved cutting performance and tool life

These features make the machine highly efficient for demanding production environments.

Build & Application

Designed for precision and durability, this CNC sliding headstock lathe delivers consistent results even during long production runs. It is especially suited for manufacturing small, high-precision components used in industries where tight tolerances are critical.

Conclusion

The HANWHA XD 20II-V CNC Sliding Headstock Automatic Lathe is a powerful and flexible solution for modern machining needs. With advanced tooling options, high-speed performance, and automation features like a chip conveyor and high-pressure coolant system, it is an excellent investment for boosting productivity and maintaining top-quality output.
