POREBA 12000mm Universal Lathe

Description

• POREBA 12000mm Universal Lathe

  POREBA 12000mm Universal Lathe

  Overview

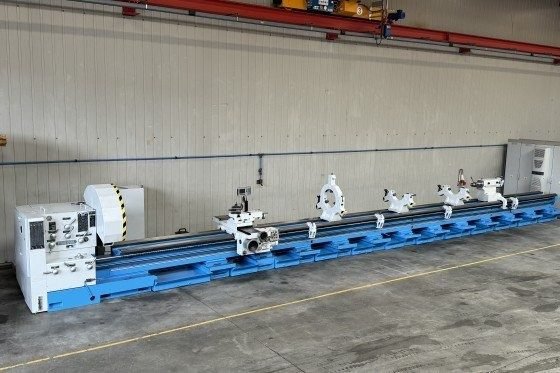

  The POREBA TPK 90 A1 / 12 universal lathe is a large, heavy-duty machine built for precision machining of long and oversized components. With an impressive 12,000 mm turning length, this lathe is ideal for industries such as energy, mining, and heavy engineering. It offers strong performance, high stability, and reliable operation, making it a great choice for demanding workshop environments.

  Key Specifications

  • Distance between centers (turning length): 12,000 mm
  • Swing over bed: 930 mm
  • Swing over cross slide: 620 mm
  • Spindle bore: 95 mm
  • Bed width: 585 mm
  • Tailstock quill stroke: 300 mm
  • Spindle taper: MK6

  These specifications allow the machine to handle very large and long workpieces with ease and precision.

  Performance & Power

  The lathe is powered by a strong 22 kW motor, providing enough power for heavy cutting operations. It offers a maximum spindle speed of 800 rpm, making it suitable for both roughing and finishing tasks on large components.

  Build & Capacity

  • Maximum workpiece load: 19,000 kg
  • Machine weight: approx. 18,000 kg

  Its massive build ensures excellent stability, reducing vibration and improving machining accuracy even under heavy loads.

  Equipment & Features

  This machine comes fully equipped with a range of useful accessories:

  • Accurite 2-axis digital readout system for accurate positioning
  • 4-jaw chuck (800 mm) for secure clamping of large workpieces
  • 2 steady rests (50 – 300 mm)
  • 2 steady rests (200 – 500 mm)
  • Feeds in all directions for flexible machining

  These features enhance both productivity and precision when working on large-scale projects.

  Dimensions

  • Length: approx. 13,400 mm
  • Width: 2,100 mm
  • Height: 2,100 mm

  The machine requires a large workspace but offers exceptional capability for handling oversized components.

  Applications

  The POREBA TPK 90 A1 / 12 lathe is ideal for:

  • Long shaft machining
  • Heavy industrial components
  • Energy and mining applications
  • Large-scale production work

  Conclusion

  The POREBA TPK 90 A1 / 12 universal lathe is a powerful and reliable solution for heavy-duty machining. With its massive capacity, strong build, and included accessories, it is a valuable asset for any workshop handling large and demanding turning projects.
