Used Straightening Press

Description

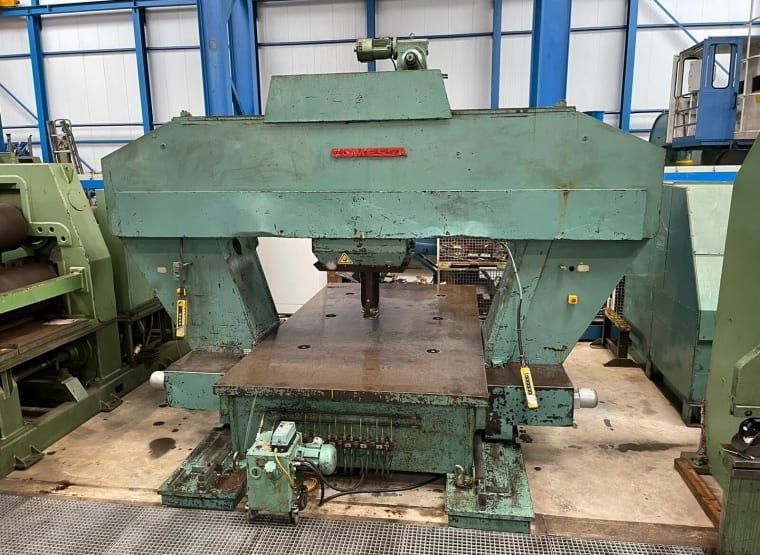

• Used Straightening Press – Comessa Type 400 Gantry – 400 Ton for Sale

• Used Straightening Press for sale

• Overview

  The Press is a heavy-duty industrial machine designed for straightening large and thick metal components with high precision. With a powerful 400 ton capacity, this gantry straightening press is ideal for demanding applications in heavy engineering, steel fabrication, and manufacturing industries. Its robust construction and advanced features make it suitable for handling oversized workpieces efficiently.

  Key Specifications

  • Press capacity: 400 tons
  • Table dimensions: 4300 x 2300 mm
  • Stroke: 300 mm
  • Distance between columns: 2350 mm
  • Total weight: approx. 49,000 kg

  These specifications allow the machine to accommodate large workpieces and deliver consistent straightening performance.

  Performance & Functionality

  The Comessa gantry press is designed for precise straightening of heavy metal structures. Its powerful hydraulic system ensures even force distribution, resulting in accurate and reliable results. The 300 mm stroke provides flexibility for different material thicknesses and deformation levels.

  Advanced Features

  • Displacement cylinder for controlled positioning
  • Movable gantry system for flexible operation
  • 6 push-out cylinders integrated into the table for efficient handling of workpieces

  These features enhance productivity and make the machine suitable for complex straightening tasks.

  Build & Design

  • Table weight: approx. 26,500 kg
  • Gantry weight: approx. 22,500 kg
  • Machine dimensions (L x W x H): approx. 5300 x 2100 x 3600 mm

  The extremely robust frame ensures maximum stability during operation, reducing deflection and maintaining precision even under heavy loads. Its gantry design allows easy access and handling of large components.

  Applications

  The 400 ton gantry straightening press is ideal for:

  • Straightening large steel plates and structures
  • Heavy fabrication and welding correction
  • Shipbuilding and construction industries
  • Repair and maintenance of large components

  Conclusion

  The Comessa Type 400 Gantry Straightening Press is a powerful and reliable solution for heavy-duty straightening applications. With its large working area, strong hydraulic system, and durable construction, it delivers consistent performance and is a valuable asset for any industrial operation dealing with large-scale metal components.
